| Product Attribute | Attribute Value |
|---|---|
| Cable Entry | No Cable Entry |
| Color | Gray |
| Configuration | No Cable Entry |
| Dimensions | 5.75 x 3.25 x 2.75 In. (146 x 83 x 70 mm) |
| Enclosure Mounting | Panel Mount |
| Hole Size | 22 mm |
| IP Rating | IP54 |
| Material | Steel |
| NEMA Rating | NEMA 12 ; NEMA 13 |
| Number of Holes | 2 |
| Series | |
| Size, Approximate Depth | 3" (76mm) |
| Size, Approximate Height | 6" (152mm) |
| Size, Approximate Width | 3" (76mm) |

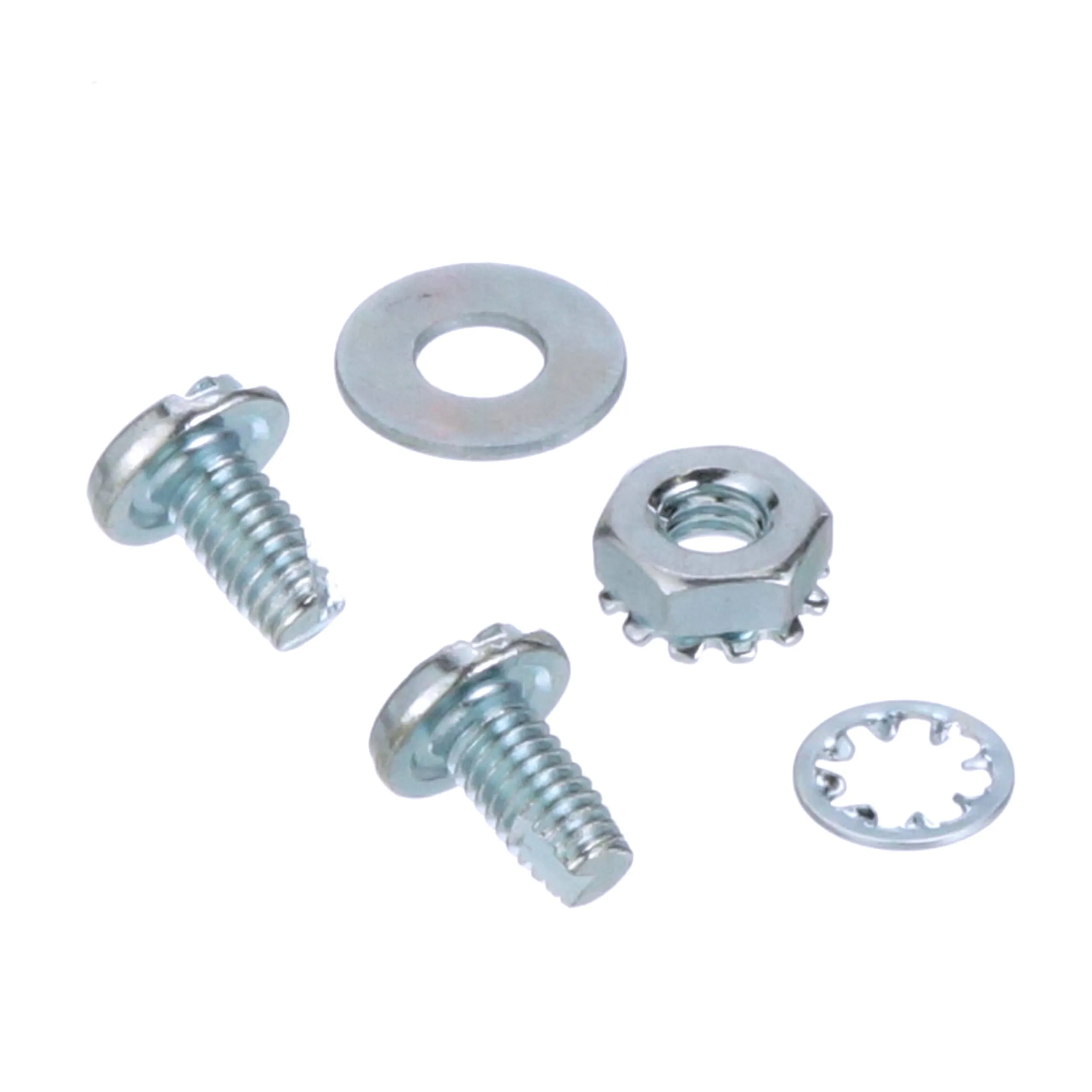

| Special Features | Grounding/Bonding Studs ; Captive Cover Screws ; Oil-Resistant Gasket |
| Standards | JIC standard EGP-1-1967 ; IEC 60529 ; UL 508 Type 4 and 4X ; CSA Type 4 and 4X |
| Type | Pushbutton Inline Enclosure |
| UPC Code | 623980279053 |
Overview

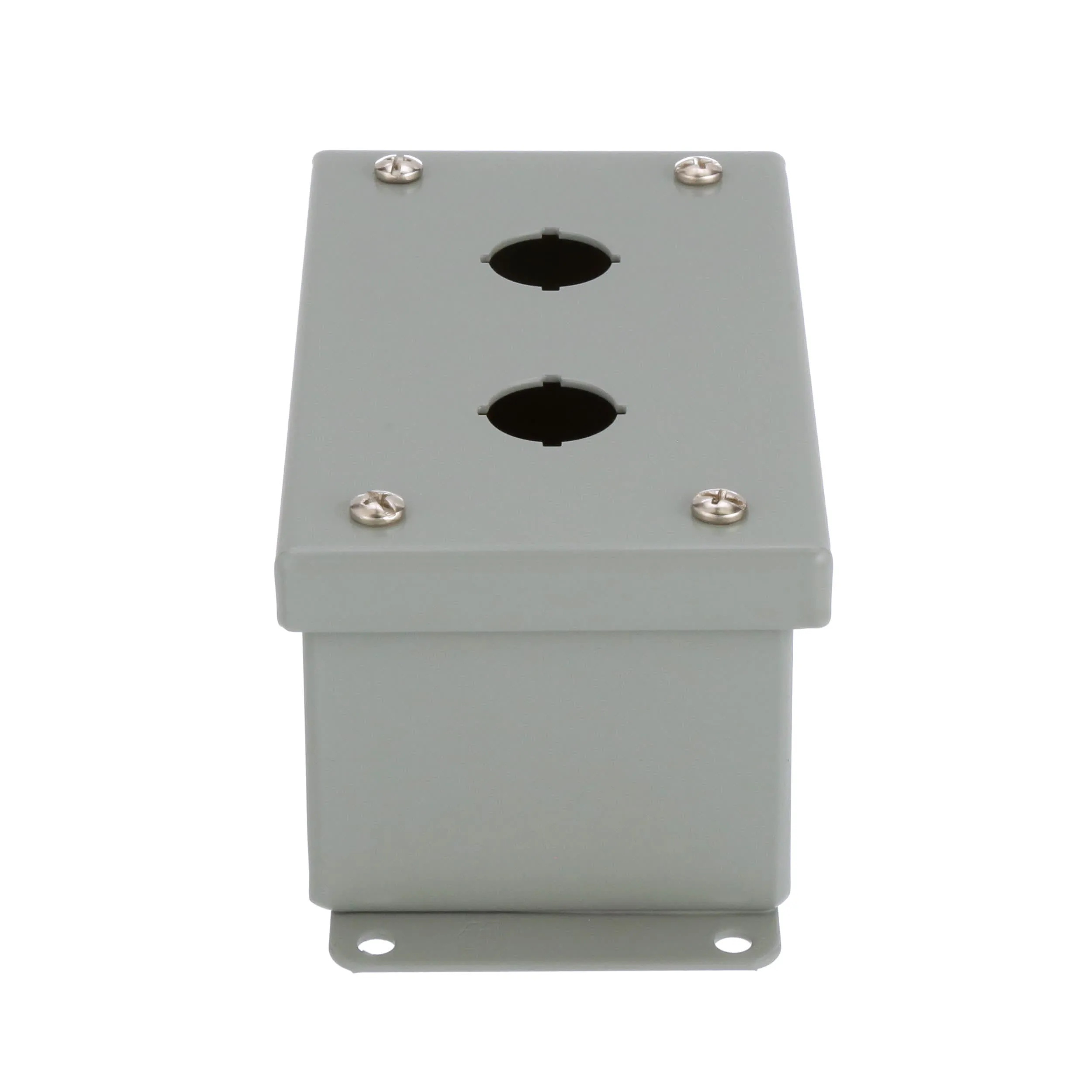

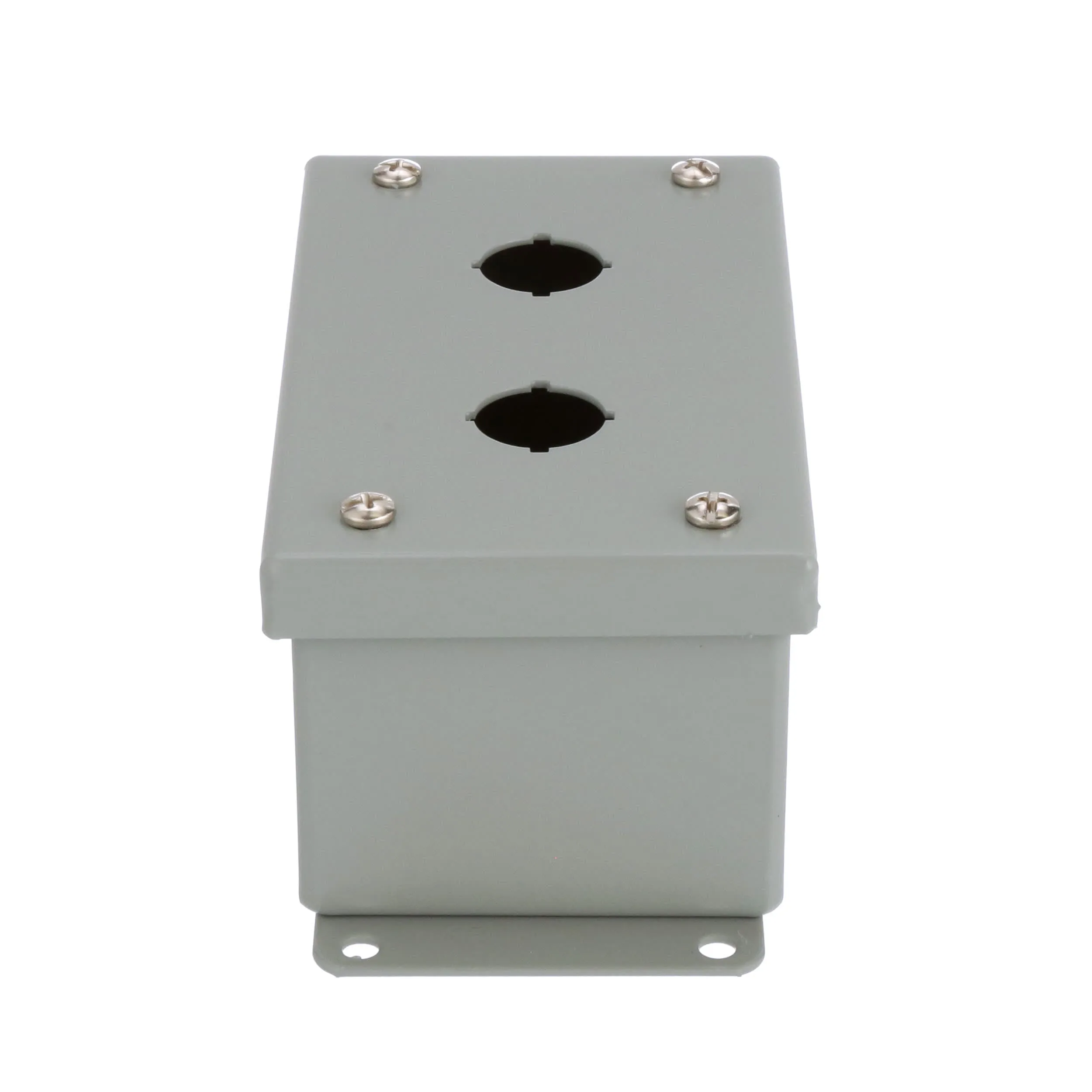

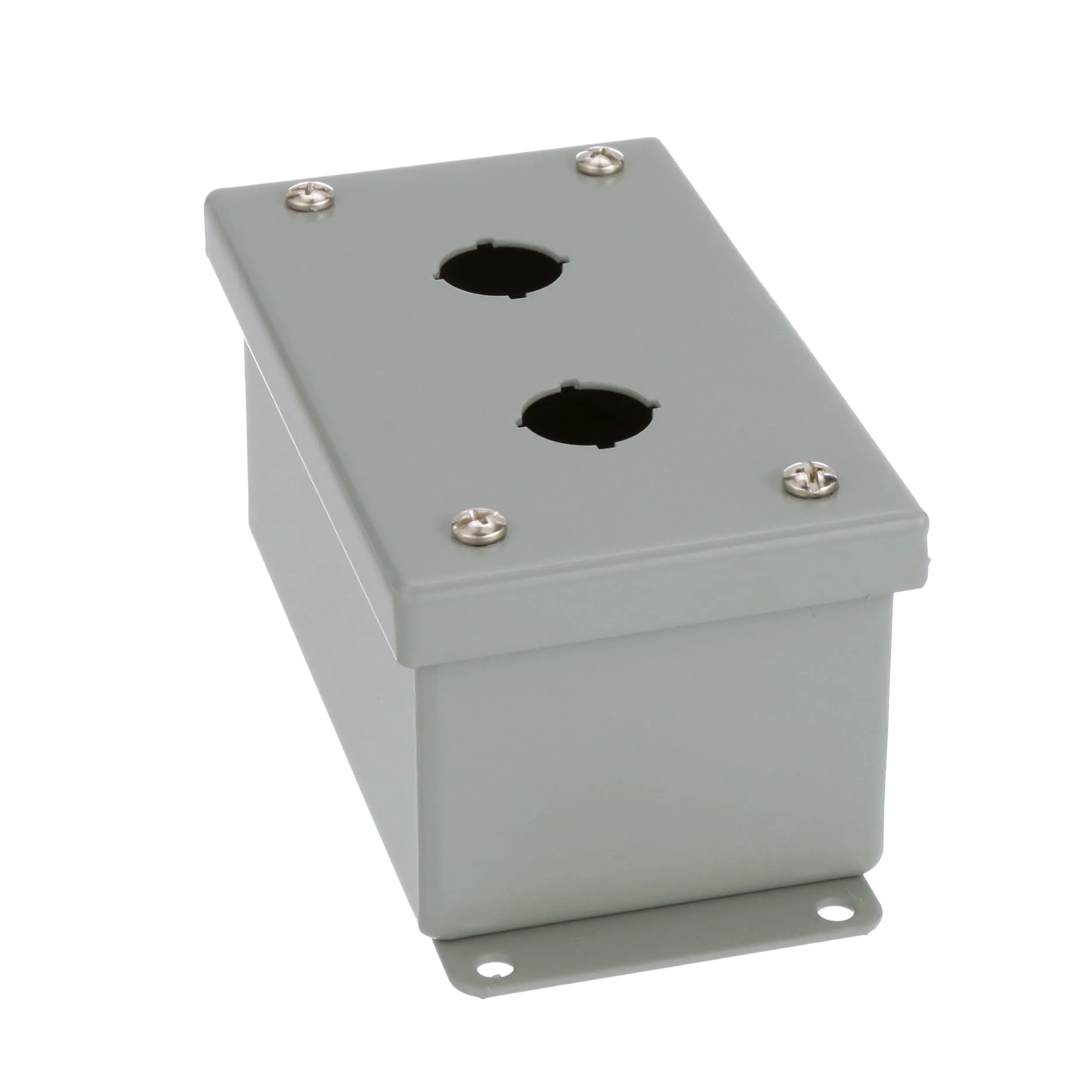

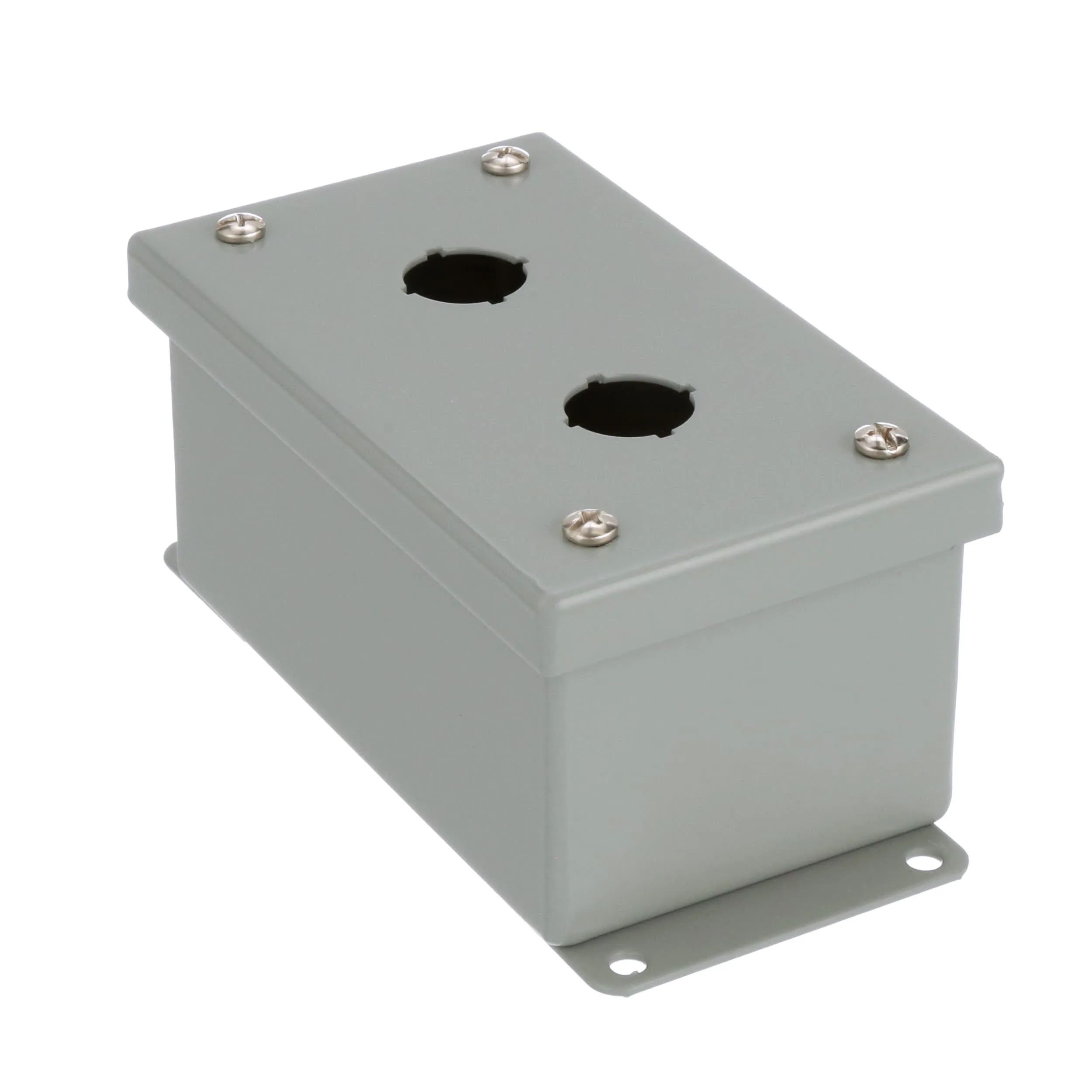

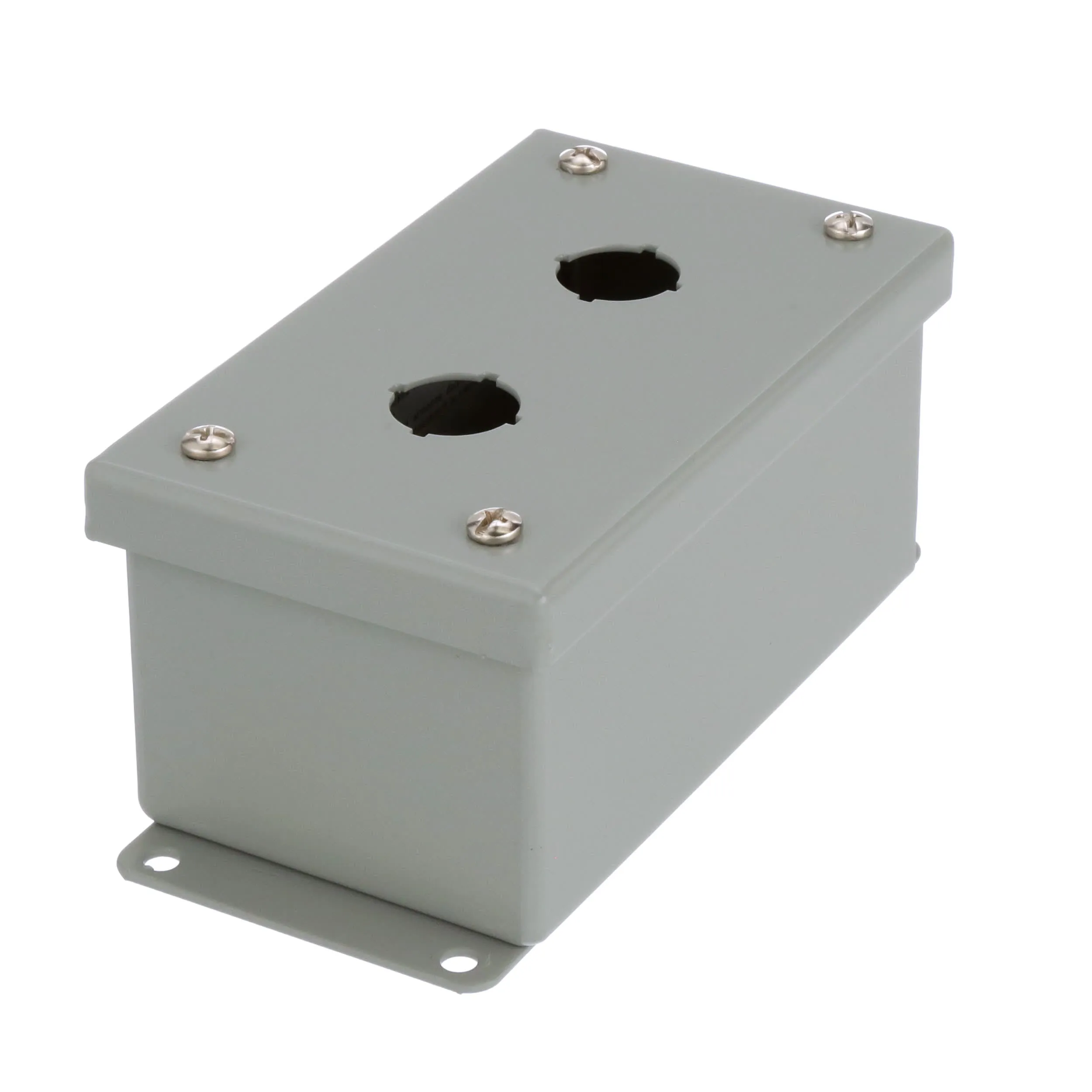

Hammond 1435 / 1437 Series Pushbutton Enclosure
Premium range of pushbutton enclosures from Hammond are designed to accept a comprehensive range of heavy duty oil tight pushbuttons, pushbuttons & pilot lights ensuring protection from dust, dirt, oil & water.
