Specifications:

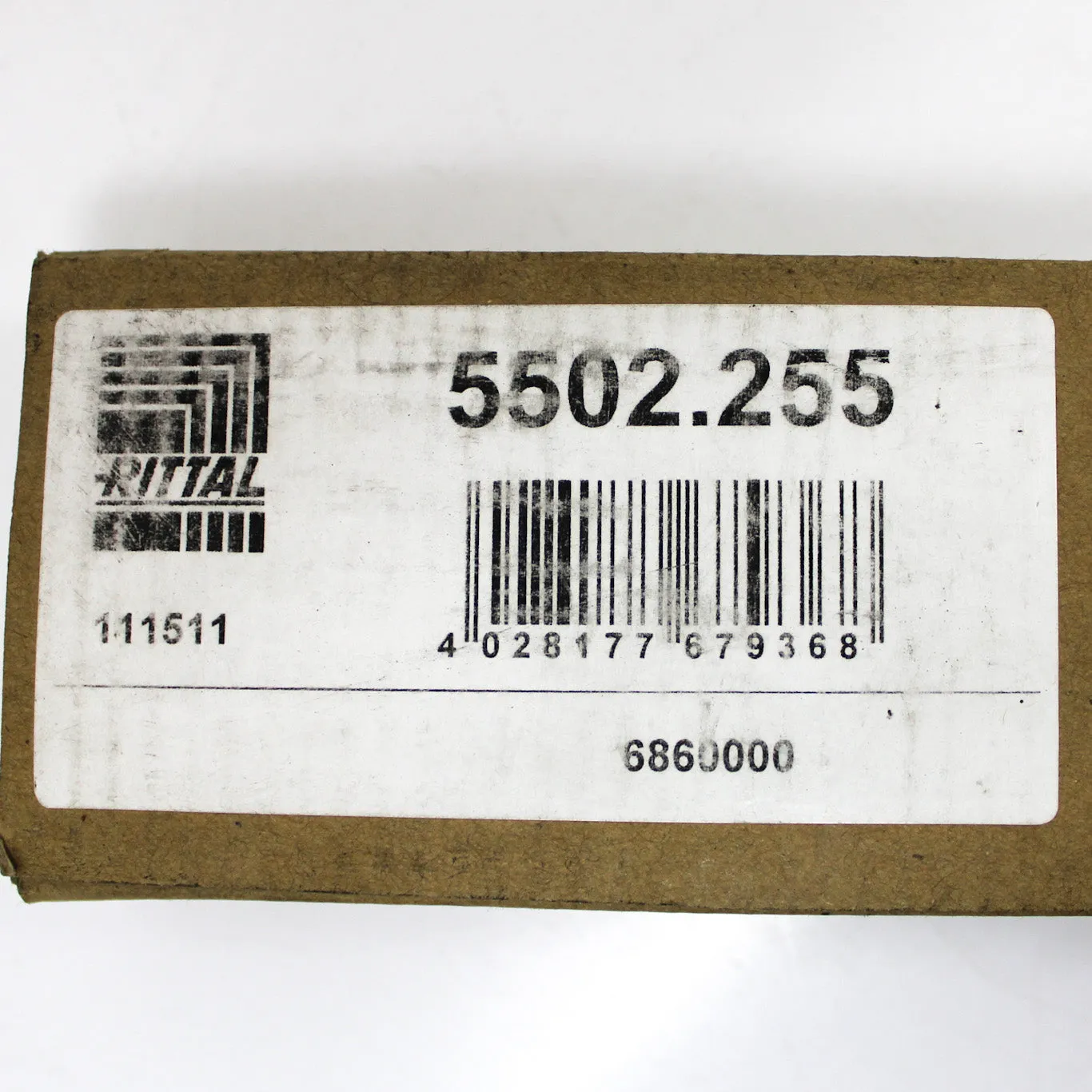

- Part Number: 5502.255

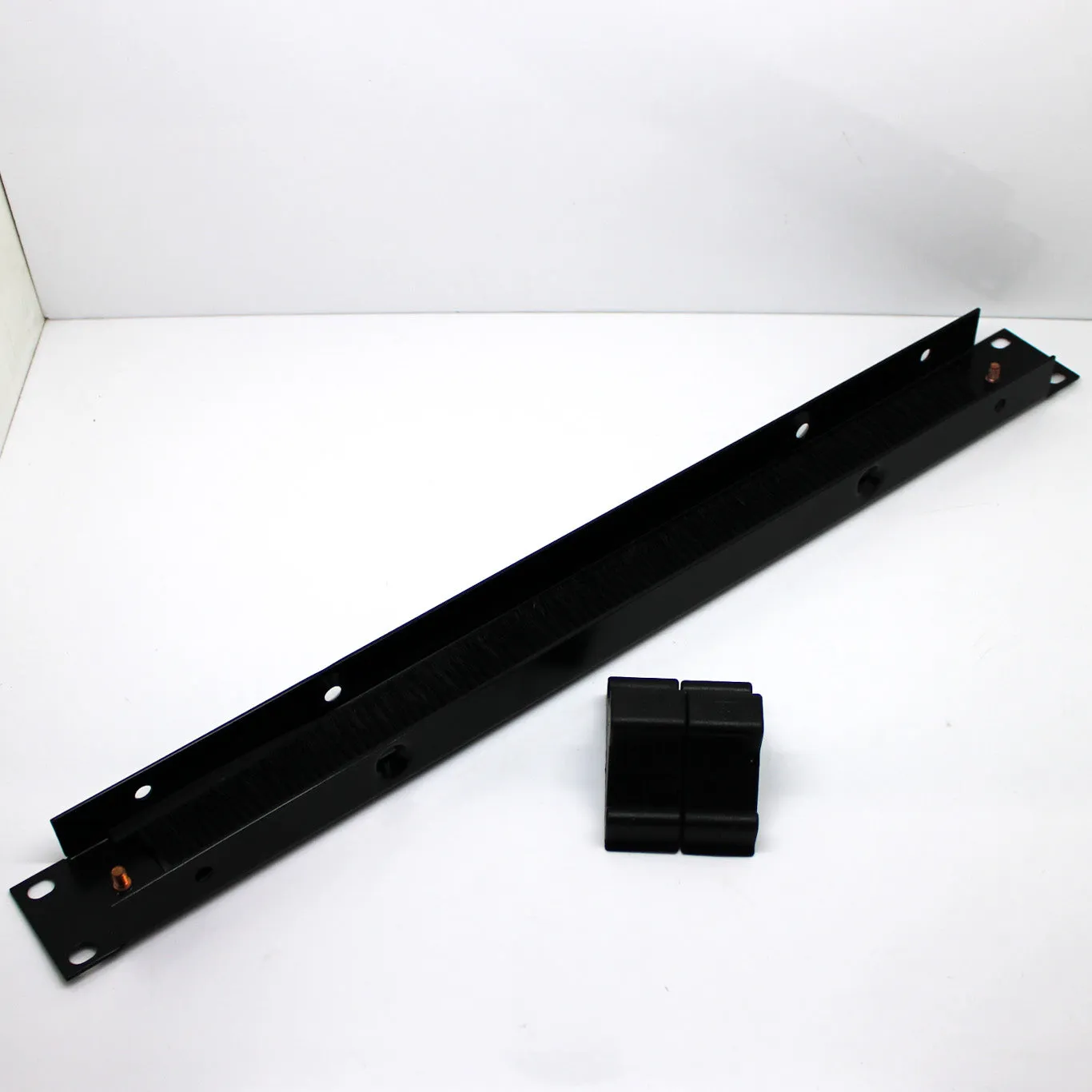

- Product description: For convenient, simple cable routing between two areas separated by a 482.6 mm (19") mounting level, for example, between the front and rear areas of the 482.6 mm (19") mounting level.
- Applications: For locking and simultaneous cable routing in installation zones to the 1 U, 482.6 mm (19") mounting standard
- Material: Sheet steel, Brush strip: Plastic, UL 94-HB
- Surface finish: Spray-finished
- Color: RAL 9005
- Mounting cut-out: Width:390 mm, Height:20 mm
- Dimensions: Width: 482.6 mm
- Units: 1 U
