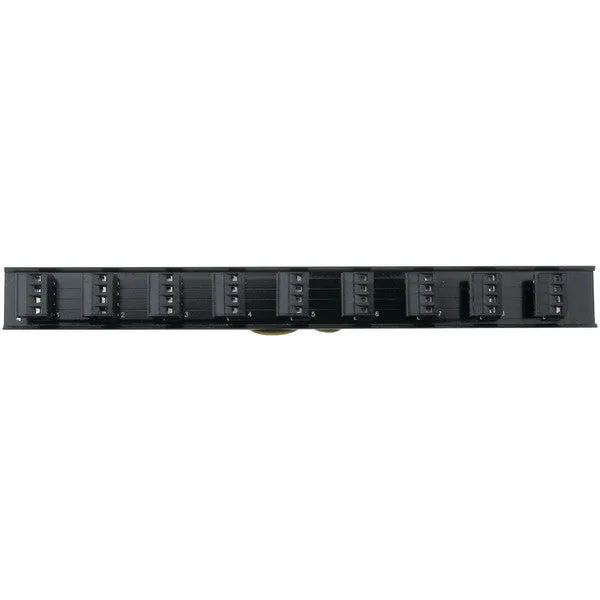

Connecting multiple IR Receivers to a single connecting block used to be a mess of wires coming to a single point. The Xantech CB18 Strip-IR 8x1 Parallel Connecting Block easily connects home run wires from multiple IR Receivers to the input of a Connecting Block. The Parallel Connecting Block can also be used the opposite way. For example, a single input can connect to 8 outputs. This can be useful for speaker wiring runs to connect a single input to 8 different rooms and volume controls. The high current design with a 12 amp peak allows for amplifiers rated as high as 500 watts to be used.
- Easily connect all those home run wires from multiple IR receivers to the input terminals of a connecting block
- High current design (12 Amps peak) allows amplifiers rated as high as 500 watts to be used with the CB18
- One-in eight-out or eight-in one-out capability
- Nine four-terminal plug-in connectors on 4-conductor bus
- Screw terminals handle wire sizes from 24 to 12 gauge
- Easily connect all those home run wires
Product Downlaods
| General Information | |
| Manufacturer | Xantech Corporation |
| Manufacturer Part Number | cb18 |
| Brand Name | Xantech |
| Product Model | CB18 |
| Product Name | CB18 Controller |
| Product Type | Controller |
| Physical Characteristics | |
| Height | 1.3" |
| Width | 11.3" |
| Depth | 1.3" |
| Miscellaneous | |
| Application/Usage | Converter |
| Whats Included | |
| Included |
|
